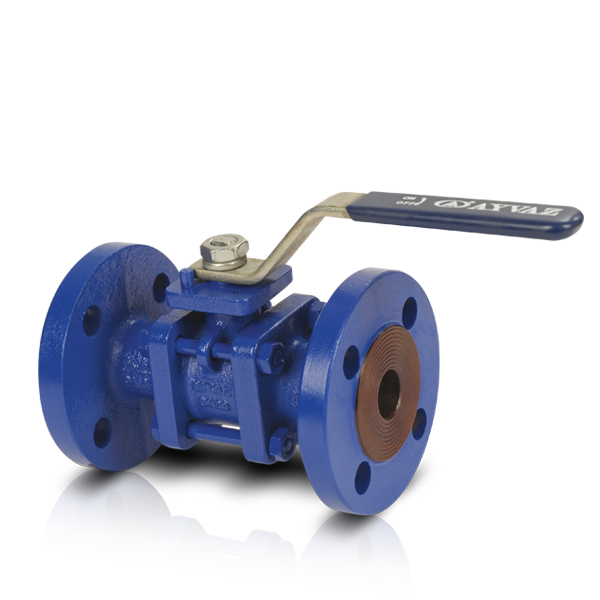

TGV-10 Full Bore Ball Valve

The main part of the ball valve is ball which has a hole in middle. When that ball rotate 90 degree it close or open. They are useful for applications which have to be rapid.
Its upper flange is suitable for assembling actuator and it is also produced according to ISO5211 standards.

Advantages;
Minimal loss of pressure
Easy to opening and closing
Good leak tightness
Compact design

TGV-10 occurs from 3 parts. Because of their configuration they provide minimal loss of pressure
Actuators can assembly easily.

Material Structure:
Body: GG25 cast iron
Ball: AISI 316 Stainless steel

Connection:
Flanged

Nominal Diameter:
DN15 (1/2”) - DN200 (8”)

Working Pressure:
Up to 16 bars

Working Temperature:
-10 to 120ºC

Typical Applications:
Heating air-conditioning systems
Food industry Chemical industry
Shipbuilding
Paper mills

Documents

TGV-10 Full Bore Ball Valve Brochure
