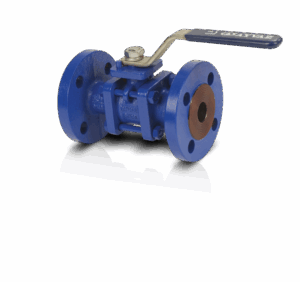

V-3FP Ball Valve

The main part of the ball valve is ball which has a hole in middle. When that ball rotate 90 degree it close or open. They are useful for applications which have to be rapid.

Advantages;
Minimal loss of pressure
Easy to opening and closing
Good leak tightness
Compact design
They tested with water test under 10 bar pressure.
Actuators can assembly easily.

They tested with water test under 10 bar pressure

Material Structure:
Body: Stainless steel AISI316 / AISI304
Ball Stainless steel AISI316 / AISI304

Connections:
Flanged

Nominal Diameter:
DN15 (1/2”) - DN100 (4”)

Working Pressure:
Up to 40 bars

Working Temperature:
-25 to 180ºC

Typical Applications:
Heating air-conditioning systems
Food industry Chemical industry
Shipbuilding
Paper mills

Documents

V-3FP Ball Valve Brochure
