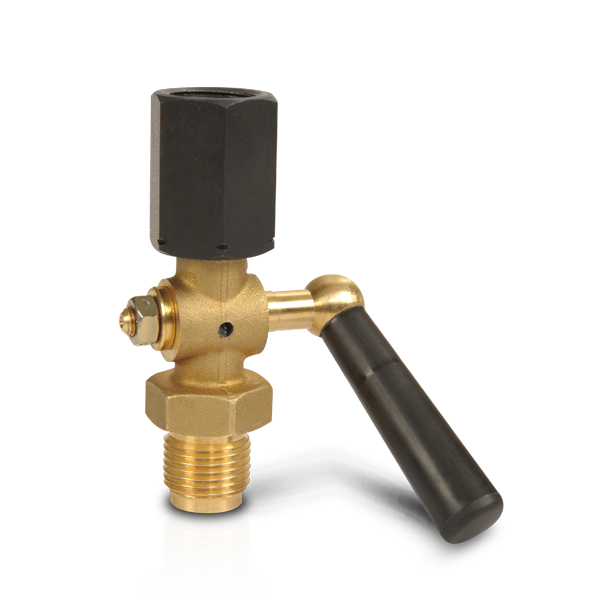

MV-330 Manometer Valves

Schneider manometer valves are used only controlling. Valves are opened manually when controlling required.

Manometer valves and manifolds are used in power stations, incinerator plants, steel mills as well as in the chemical and petrochemical industry for pressure and differential pressure measurement.

Pressure tested according to DIN 3230 and suitable for liquid, steam and gas service e(also for sour gas service according to NACE or BEB standard) material certificates and inspection certificates according to EN 10204 are available.

Material Structure:
Shaft, valve seat: 1.4104 stainless steel
Body and cover: Nickel coated brass

Connection:
Screwed

Nominal Diameter:
DN15 (1/2”)

Working Pressure:

Up to 25 bars

Working Temperature:
-10ºC to 200ºC according to material structure

Typical Applications:
Chemical and petrochemical industry
Energy plants
Fuel industry
Steel mills
